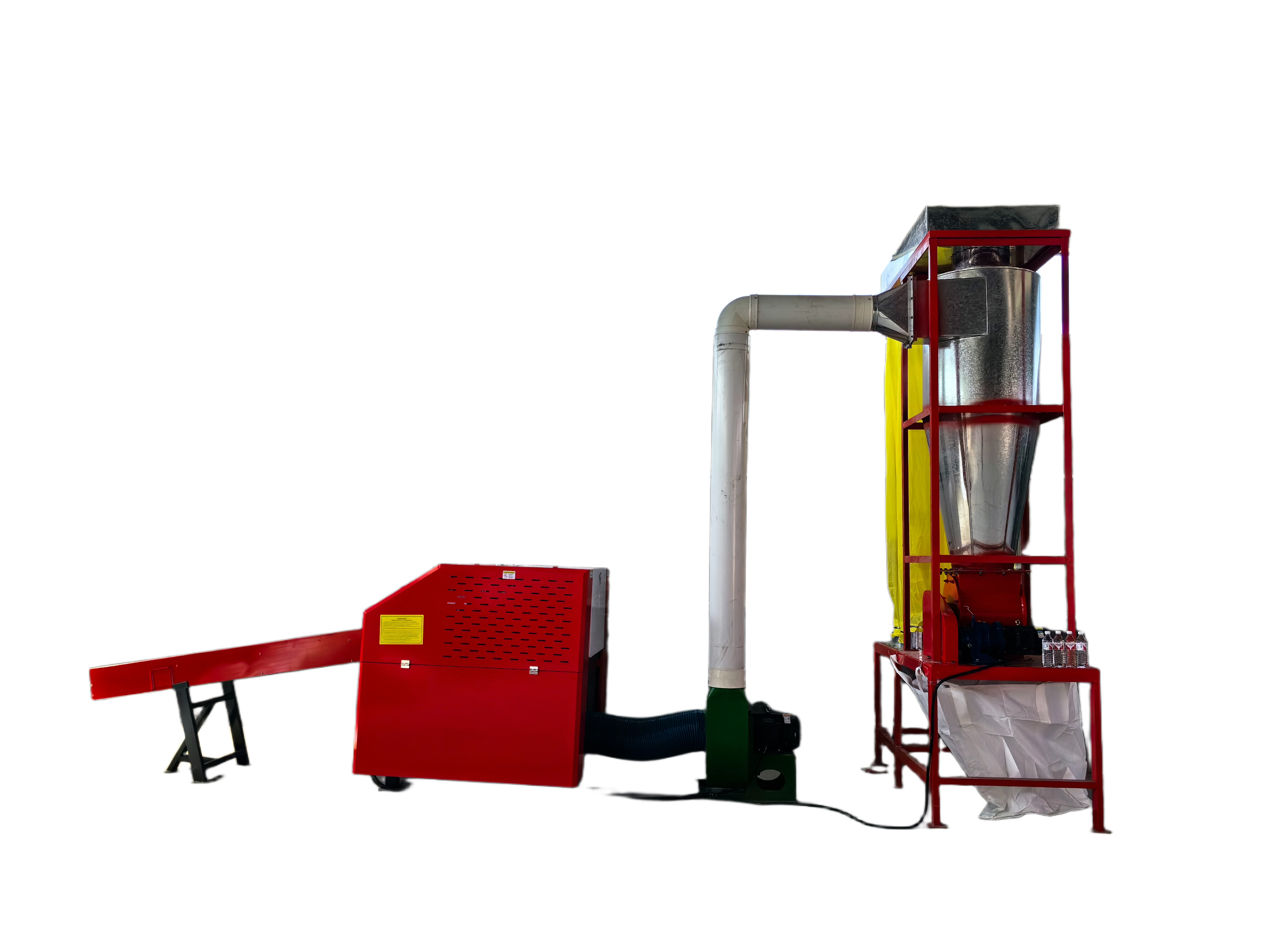

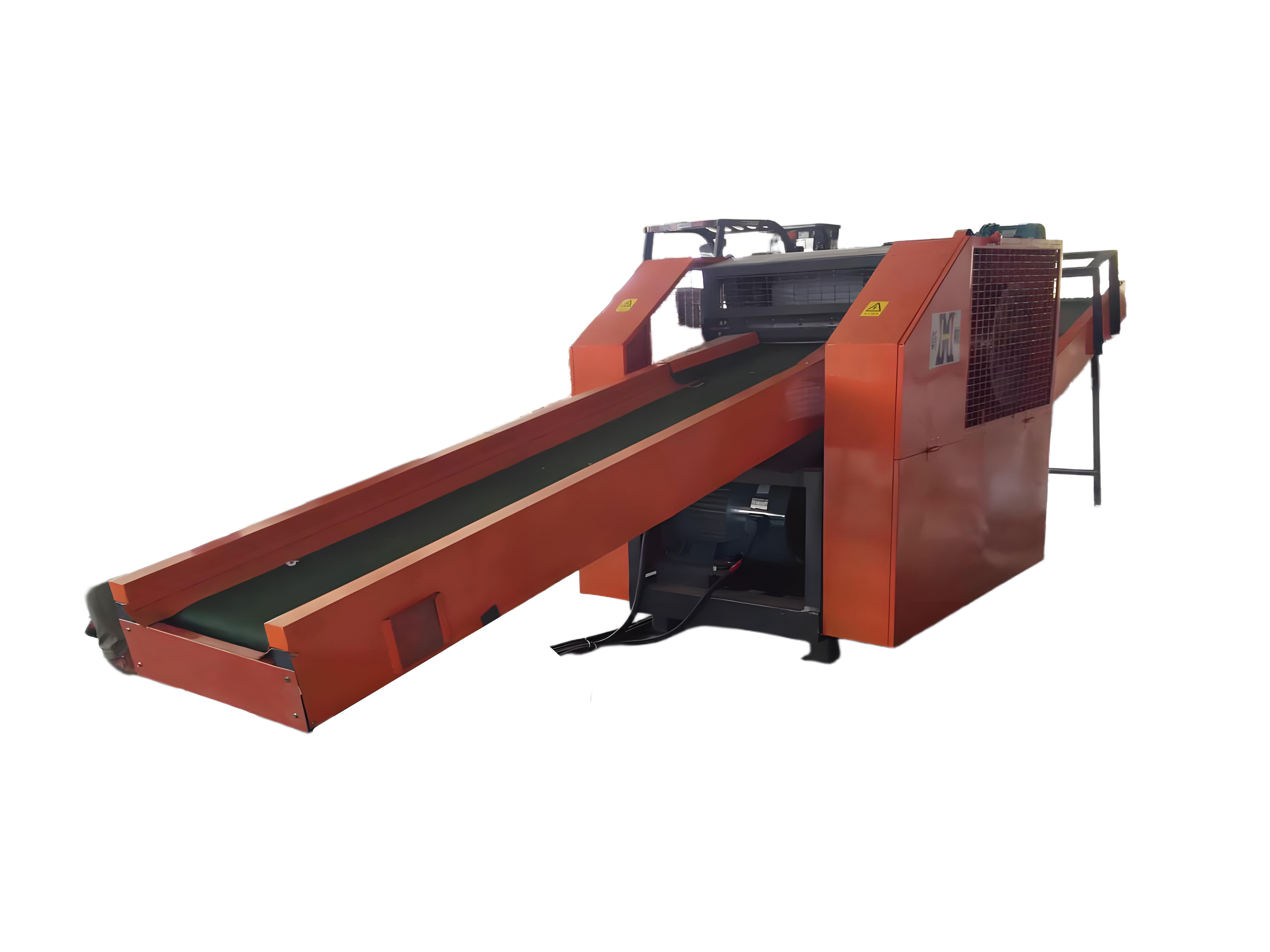

Graphene battery grade chip crusher
Battery-grade scraps are mainly used in the following fields and applications:
1. Battery manufacturing: recycled as raw materials, reprocessed into battery-grade cathode materials.
2. Metal materials: Extract the metal elements, such as cobalt, lithium, etc., for the manufacture of other metal materials.
3. Chemical products: As chemical raw materials, used in the production of various chemical products.
4. Energy storage materials: raw materials processed into energy storage materials for electrochemical energy storage equipment.
5. Scientific research experiment: As an experimental material, it is used in the research of material science and battery technology.
Product Parameters (1)
| Type parameter | 800F model | 1200Fmodel | 1600Fmodel |
1 | Shearing machine | 8P7.5kw | 8P18.5kw | 8P22kw |
2 | Conveyer motor | 4P1.5kw | 4P2.2kwVariable frequency motor | 4P3.0kwVariable frequency motor |
3 | Reduction type number | 100# | 120# | 125# |
4 | Reducer speed ratio | 31：1 | 31：1 | 31：1 |
5 | Shear motor cover Belt pulley | Φ140 | Φ160 | Φ180 |
6 | Moving cutter head | Φ300*400 length | Φ400*600 length | Φ500*800 length |
7 | Distribution box | Power distribution box | Independent electrical cabinet | Independent electrical cabinet |
8 | Input tape | 1400*330mm | 3000*520mm | 3000*720mm |
9 | Output tape | 3.0 Fan/conveyor belt | 4.0kw Fan/conveyor belt | 7.5kw Fan/conveyor belt |
10 | Moving cutter | Alloy tool steel 8 pieces *400 | Alloy tool steel 6 pieces*600 | Alloy tool steel 8 pieces*800 |
11 | Stationary knife | Alloy tool steel 2 pieces*400 | Alloy tool steel 2 pieces*600 | Alloy tool steel 2 pieces*800 |
12 | Machine size | 1350*1000*1100 | 1550*1450*1600 | 1550*1650*1700 |
13 | Cutting size | 10mm | 10mm | 10mm |
14 | Work capacity | 100-150kg/h | 250-350kg/h | 450-650kg/h |
15 | weight | 800kg | 1800kg | 2300kg |
Product Parameters（2）
| Type parameter | 2400F model | 2400F H model | 3200F model |
1 | Shearing machine | 8P 22kw *2 sets | 8P 30kw*2sets or 37kw*2 sets | 8P 55kw*2sets or 75kw*2 sets |
2 | Conveyer motor | 4P4.0kwVariable frequency motor | 4P4.0kwVariable frequency motor | 4P5.5kw Variable frequency motor |
3 | Reduction type number | 135# | 135# | 135# |
4 | Reducer speed ratio | 31：1 | 31：1 | 31：1 |
5 | Shear motor cover Belt pulley | Φ180 | Φ180 | φ220 |
6 | Moving cutter head | Φ600*1200 length | Φ800*1200 length | φ1000*1600 length |
7 | Distribution box | Independent electrical cabinet | Independent electrical cabinet | Independent electrical cabinet |
8 | Input tape | 3000*1100mm | 5000*1100mm | 5000*1500mm |
9 | Output tape | 11kwFan/conveyor belt | 11kw Fan/conveyor belt | 11kw Fan/conveyor belt |
10 | Moving cutter | Alloy tool steel 8 pieces*1200 | Alloy tool steel 16 pieces*600 | Alloy tool steel 32 pieces*400 |
11 | Stationary knife | Alloy tool steel 2*1200 | Alloy tool steel 4*600 | Alloy tool steel 4*400 |
12 | Machine size | 2200*2043*1770 | 2280*2200*2000 | 2350*3300*2400 |
13 | Cutting size | 10mm | 10mm | 10mm |
14 | Work capacity | 800-1000kg/h | 1000-1200kg/h | 2000kg/h |
15 | weight | 3500kg | 5100kg | 10500kg |
Standard: Main engine + conveyor belt Random gift: a set of fragile bearings, a set of triangle belts, a set of special toolbox |
Note:
1. Different cutting sizes of materials are different. There will be changes in output, and there will be changes in technical parameters. Need detailed communication.
2. About machine size. Only the dimensions of the machine are indicated in the specification sheet. Conveyor belt size is 3 meters, can also be customized according to customer requirements.
